FandF

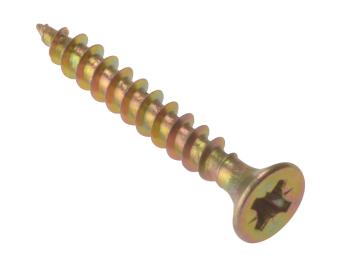

Multi Purpose Screw ZYP5.0x100 Box 100

• Single thread multi-purpose woodscrews.
• Head: Countersunk pozidrive compatible recessed.
• Finish: Zinc Yellow Passivated.
• Highly versatile and immensely popular single thread screws.
• Perfect for a whole host of fixing needs.
• Ideal for fixing into a range of substrates including softwoods, hardwoods, chipboards and fibreboards.
• Quicker and easier insertion thanks to an extra deep insert bit recess, which enables a firmer positive drive.
• Single thread and special wax coating also increases speed and ease of insertion.
• Single thread design provides increased holding power particularly when used with particle boards like MDF.
• Offers more corrosion resistance than zinc plated products thanks to additional passivation process.
• Suitable for numerous ironmongery, joinery, electrical and plumbing applications.

Size5.0 x 100mm
FinishZinc Yellow Passivated
Pack Depth (mm)125
Pack Height (mm)55
Pack Width (mm)90
Pack Paper/Card Weight (gm)42
Pack Plastic Weight (gm)0
Pack CodeBOXFF5
Insert Bit SizeNo.2
Thread Length73mm
Imperial Size4" x 10
Metric Size5.0 x 100mm
Outer Depth (mm)300
Outer Height (mm)140
Outer Width (mm)195
Diameter5.0mm
BrandFandF
Pack TypeBox
Length100mm
Barcode5028485992974
Pack Qty100
Drive TypePozi PZ
Head TypeCountersunk
