CorePlus

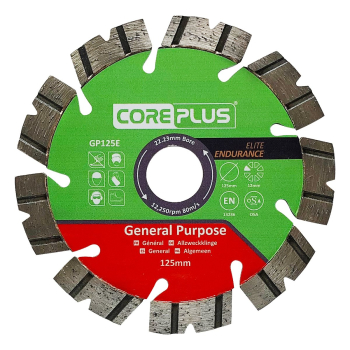

CorePlus Diamond Blade 125mm Each General Purpose Elite

• Elite Endurance diamond metal matrix extends the lifetime of the blade way beyond expectation.
• Breakthrough double laser welding technology reducing the risk of damaged segments.
• OSA certified to the highest level of quality and tested safety.
• State-of-the-art metallurgically engineered high-performance, long-life bond formulation.
• Maximum concentration of ultra grade diamond meshed within the bond.
• Precision engineered hardened high grade 65Mn Manganese Steel tensioned core.
• Manufactured to EN 13236 quality standards.

To cut these materials:
Blocks - Breeze, Clay - Paviours, Clay - Pipes, Clay - Roof Tiles, Concrete - Hard Aggregates, Concrete - Paving Slabs, Concrete - Pipes, Concrete - Kerbs, Concrete - Tiles, Concrete - Cured, Concrete - Limestone, Concrete Lintels, Concrete - Lintels Reinforced, Bricks, Bricks - Engineering, Bricks - Hard Facing, Bricks - Medium Facing, Paviours - Hard, Paviours - Medium Block, Sandstone - Medium, Sandstone - Hard, Slate, Slate - Hard, Roofing Tiles, Quarry Tiles.

Size125mm
Pack Depth (mm)5
Pack Height (mm)150
Pack Width (mm)130
Metric Size125mm
Outer Depth (mm)380
Outer Height (mm)180
Outer Width (mm)290
Diameter125mm
Bore Size22.23mm
BrandCorePlus
Pack TypeSleeve
Barcode5028485214847
Pack Qty1
Segment Height12mm
Segment Width2.3mm
Segment DesignSegmented
Segment AttachmentDouble Laser Welded
RPM12250
